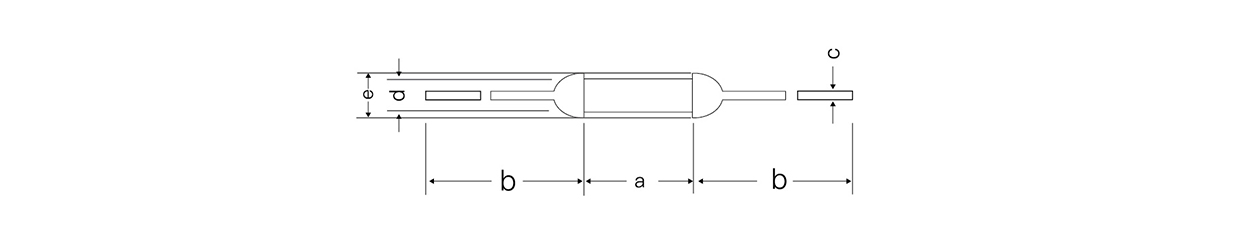

單位：mm
系列 | a | b | c | d | e |
P-3A-??F | 10.0±0.5 | 38±3 | Φ0.6±0.02 | Φ3.0±0.1 | 3.3及以下 |
型號 | 額定動作溫度 Tf（℃） | 實測動作溫度 (℃) | 保持溫度 Th（℃） | 極限溫度 Tm（℃） | 額定電流 Ir(A) | 額定電壓 Ur(V) | |
IEC | Corp | ||||||
P0-3A-F | 84 | 84 + 0 / -10 | 82±2 | 65 | 200 | 3 | 250 |
P1-3A-F | 102 | 102 + 0 / -10 | 98±3 | 80 | 200 | 3 | 250 |
P2-3A-F | 115 | 115 + 0 / -10 | 112±3 | 95 | 200 | 3 | 250 |
P3-3A-F | 125 | 125 + 0 / -10 | 120±3 | 105 | 200 | 3 | 250 |
P4-3A-F | 130 | 130 + 0 / -10 | 126±2 | 107 | 200 | 3 | 250 |
P5-3A-F | 135 | 135 + 0 / -10 | 131±3 | 115 | 200 | 3 | 250 |
P9-3A-F | 138 | 138 + 0 / -10 | 135±2 | 115 | 200 | 3 | 250 |
P12-3A-F | 145 | 145 + 0 / -10 | 140±2 | 126 | 200 | 3 | 250 |
P7-3A-F | 150 | 150 + 0 / -10 | 145±3 | 128 | 200 | 3 | 250 |
型號 | UL/CUL | VDE | CCC | PSE |
P0-3A-F | E140847 | 40000039 | 2020980205000145 | JET0749-32001-1005 |
P1-3A-F | JET0749-32001-1003 | |||
P2-3A-F | ||||
P3-3A-F | JET0749-32001-1004 | |||
P4-3A-F | ||||
P5-3A-F | ||||
P9-3A-F | ||||
P12-3A-F | JET0749-32001-1006 | |||
P7-3A-F | ||||
○待定 |
